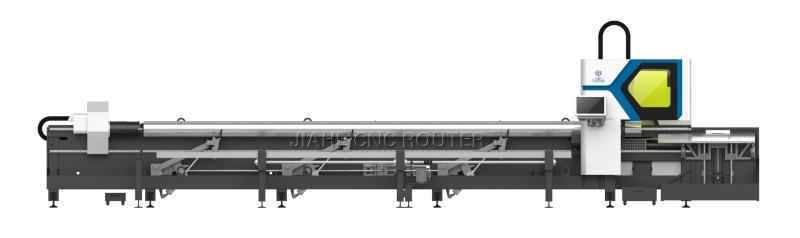

JK-K9 Laser Tube Cutting Machine

Best Chose for Small Tube Cutting

Ultra-Short Remnants

1.5G Acceleration: Powerful Productivity

Equipped with Bochu Control System; Bochu Nesting Software (Optional)

Cutting Diameter Range: Round Tubes: Ø 8–90 mm; Square Tubes: □ 8×8 – 80×80 mm

Compatible Laser Power Range: 1500–3000 W

Contact Now E-Mail Telephone WhatsApp

Product Details

The K9 Fifth-Generation Fully Intelligent Laser Tube Cutting Machine is a precision CNC automatic laser cutting system that integrates an internationally advanced fiber laser source with a high-performance, high-precision dual-chuck mechanism. It is equipped with highly efficient transmission components—including high-precision gears, racks, and linear guides—and is powered by a finely tuned, customized CypCut CNC control system. As a high-tech product that seamlessly combines laser cutting, precision mechanics, and CNC technology, it is primarily designed for cutting various metal tubes—such as carbon steel, stainless steel, and aluminum (including square, round, and oval tubes). Characterized by its professional-grade performance, high speed, exceptional precision, and high efficiency, it stands as the preferred cutting solution for the metal tube processing industry.

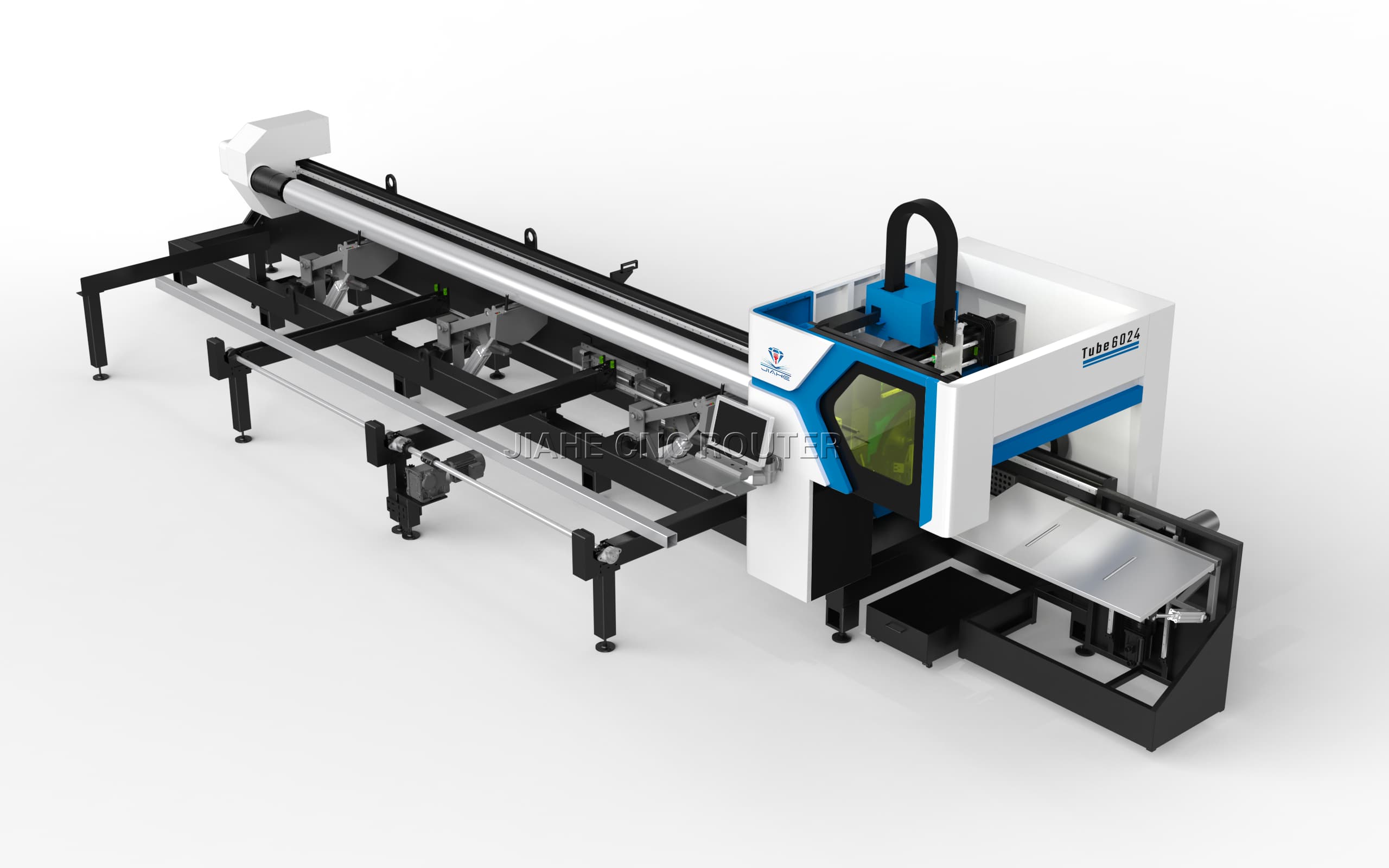

Laser Tube Cutting Machine

Technical parameters of JK-K9 Laser Tube Cutting Machine:

No.	Item	Parameters
1	Laser Power(W)	1500-3000W
2	Laser Wavelength	1070 nm
3	Minimum Line Width	≤0.15mm
4	Cooling Type	Water cooled
5	Pipe Cutting Range	Round：ø8-90mm Square：□88-8080mm
6	Max. Acceleration	1.5G
7	Y-axis traveling size	6945mm
8	X-axis traveling size	250mm
9	B-axis traveling size	360°
10	Z-axis traveling size	200mm
11	Feeding Method (Optional)	Semi-Automatic Feeding / Fully Automatic Feeding (Auxiliary Equipment)
12	Machine dimensions	≈890016002100mm
13	Machine weight	≈2.7T
