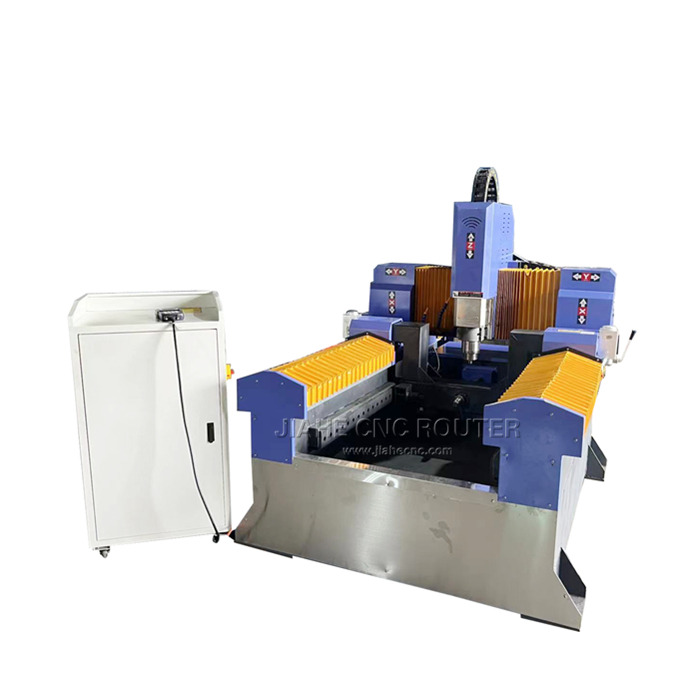

Mini CNC Machine Stone

Rotary diameter: 400mm, length 700mm
Hybrid servo motors
4axis DSP control system
5.5kw water cooled spindle

Contact Now E-Mail Telephone WhatsApp

Product Details

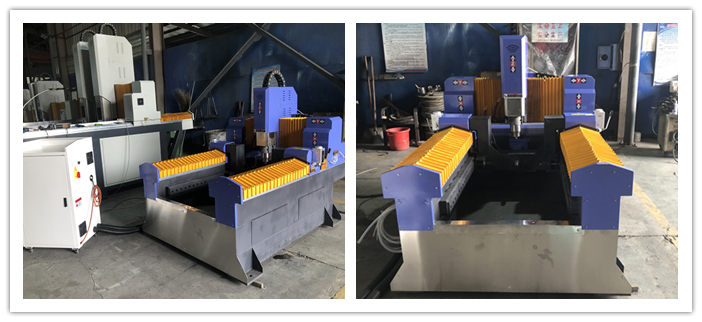

Model JK-0470s 4 axis Mini CNC Machine Stone with hybrid servo motors and drivers, rotary diameter 400mm length 700mm, , richauto 4axis dsp controller, specially used for engraving small stone piecework.

Technical parameters:

Model	JK-0470S
Rotary diameter	400mm
Rotary length	700mm
X,Y,Z axis positioning accurate	0.1mm
Table type	Aluminum profile + hard ABS board
Lathe Structure	Steel structure tempering treatment + anti-corrosion three times painting + stainless steel water blocking
X, Y Structure	Gear Wheel Transmission,Shaft Linear Bearings
Z Structure	Ball Screw, shaft Linear Bearing
Max.Speed	0-20000mm/min
Max. Working Speed	0-10000mm/min
Spindle Power Motor	5.5kw 24000rpm water cooled spindle
Lubricating system	Automatic oil lubricating system for rails, ball screws

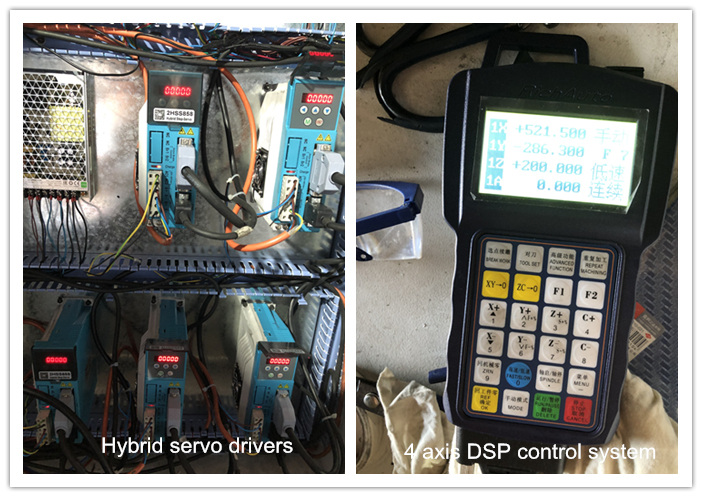

Motor and driver	Leadshine hybrid servo
Working Voltage	380V,3PH(optional 220V)
Command	G Code, uoo, mmg, *plt
Operating System	DSP controlling system
Interface	USB
Tools size	3.175mm-12.7mm
Collet	ER20
Software	Artcam software
Circuits and plumbing lines	Circuits and plumbing lines
Dustproof and waterproof	Stainless steel L-shaped & U-shaped design
Packing Size	250020501900mm
Net Weight	1500KG
Gross Weight	1700KG
